Kerker 2:1 Exhaust Install

Uncorked

Kerker exhaust

Time for more grunt, Sportster.

Words and Photos: Jeff Leighton

A nice set of pipes does wonders for a bike both in the sound and looks departments. This is especially true when the pipe is comprised of both polished stainless and carbon fiber. Such is the case with this Kerker 2:1 pipe (Part # 166-7083). Kerker’s name is synonymous with racing and quality and the company has been making great exhausts for V-twins for years. SuperTrapp purchased Kerker in 1991 and has been keeping its level of quality and manufacturing alive in the USA ever since.

This $865 hi-pipe has a great classic streetbike look to it, which will go right along with the appearance of our 1999 H-D “Street Crosser” Sportster. The Kerker 2:1 pipe has a mandrel-bent 2-into-1 polished stainless header coupled to a carbon-wrapped muffler with a high-flowing 2-inch baffle. The system comes with everything needed to bolt it on with ease, including brackets that use the stock exhaust locations so no drilling or tapping is required. We installed it in less than an hour using only hand tools, so you should easily be able to do it in your garage or carport with no issues at all. Here’s how we did it.

Source:

Kerker/SuperTrapp

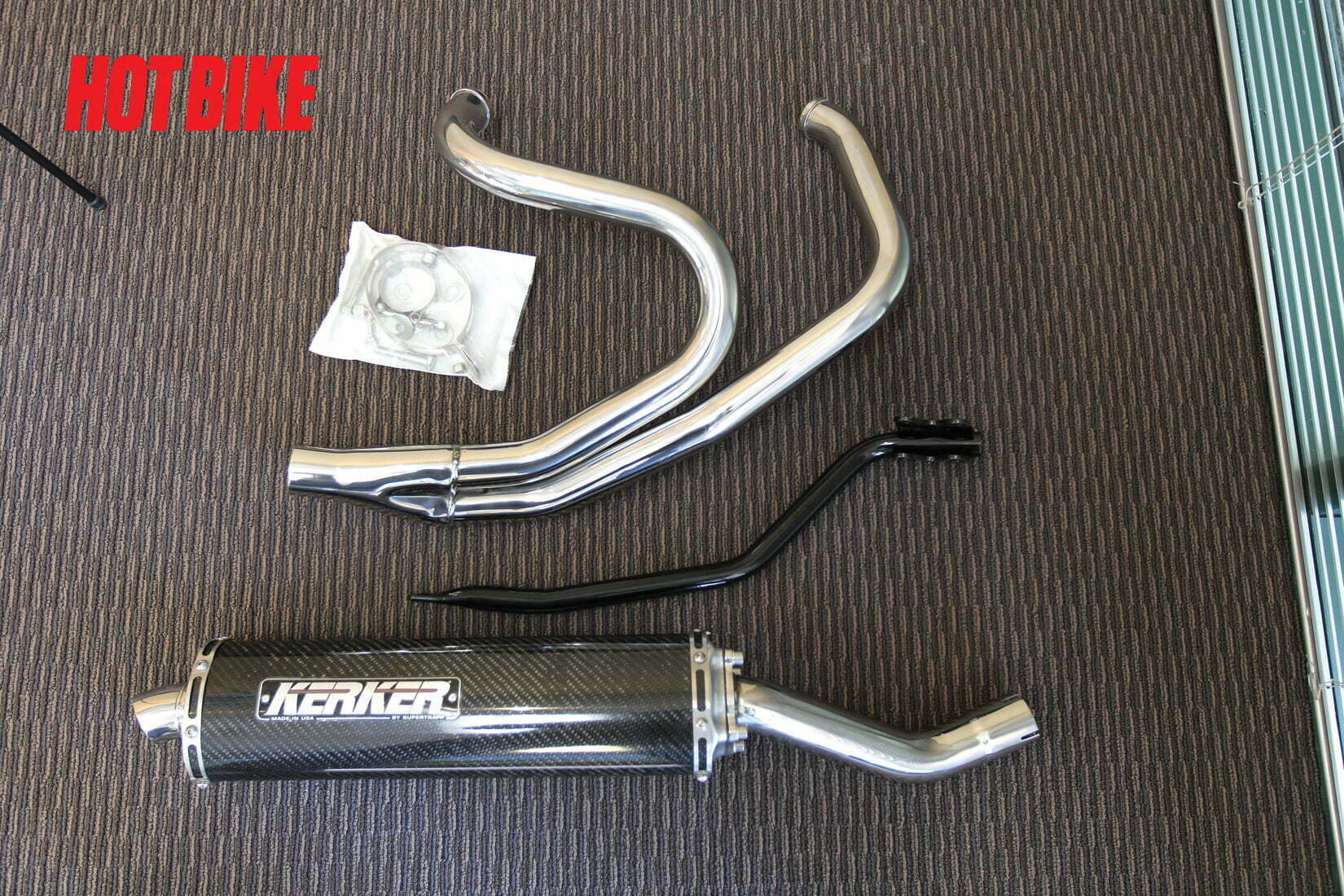

  1. Here’s a shot of the Kerker 2:1 pipe right out of the box. Looks sweet, doesn’t it?

Words and Photos: Jeff Leighton

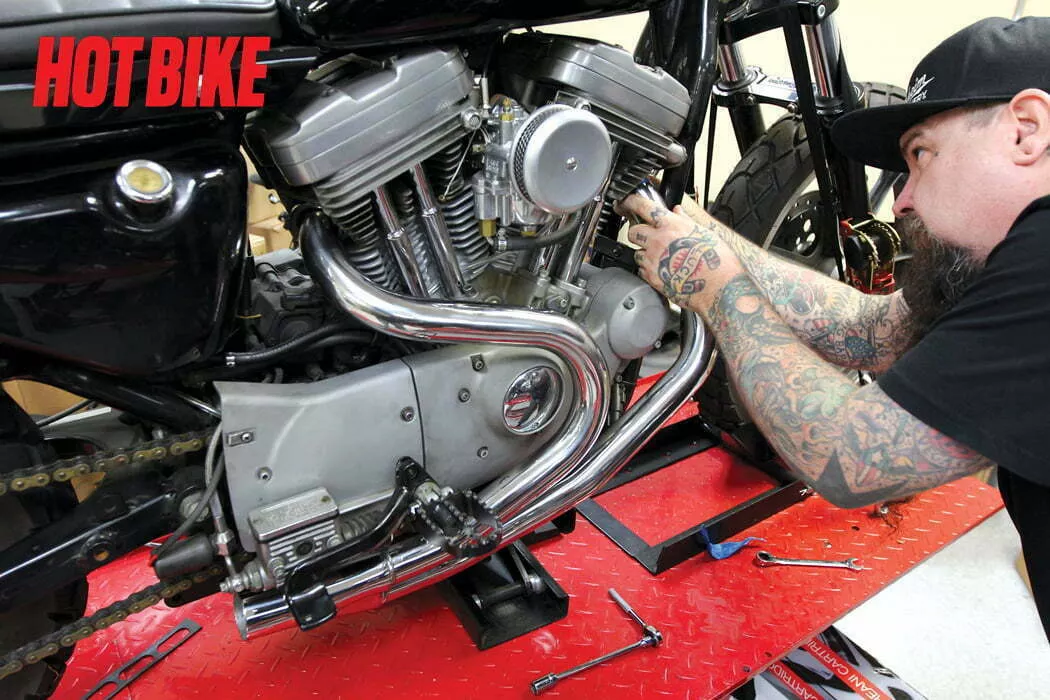

  1. We yanked the old pipes off our Sportster, replaced the gaskets, and began to fit the exhaust’s polished stainless headpipes to the jugs of our bike.

Words and Photos: Jeff Leighton

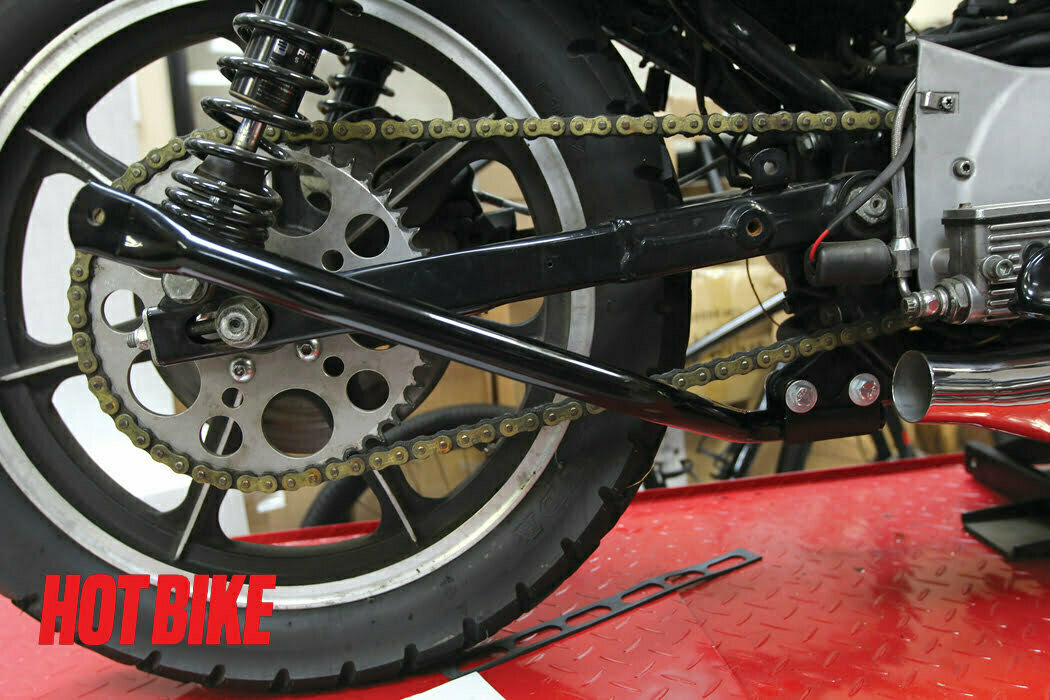

  1. The muffler hanger was bolted to the Sportster’s stock exhaust location. We only snugged the bolts up so we can adjust its position if need be.

Words and Photos: Jeff Leighton

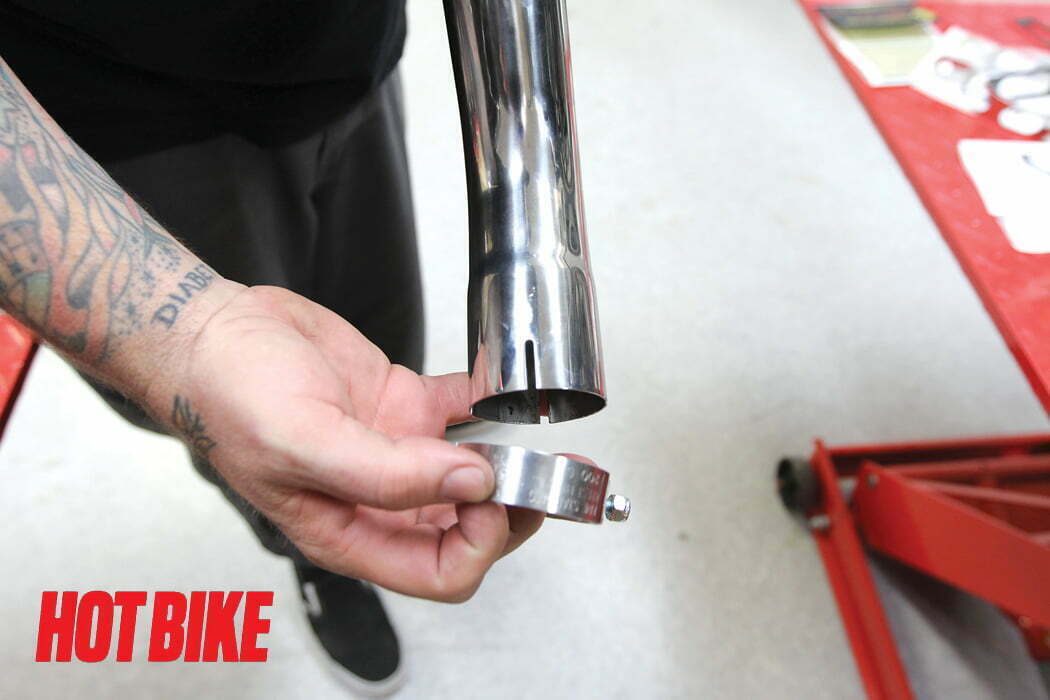

  1. The supplied stainless exhaust clamp was slid onto the bottom of the muffler.

Words and Photos: Jeff Leighton

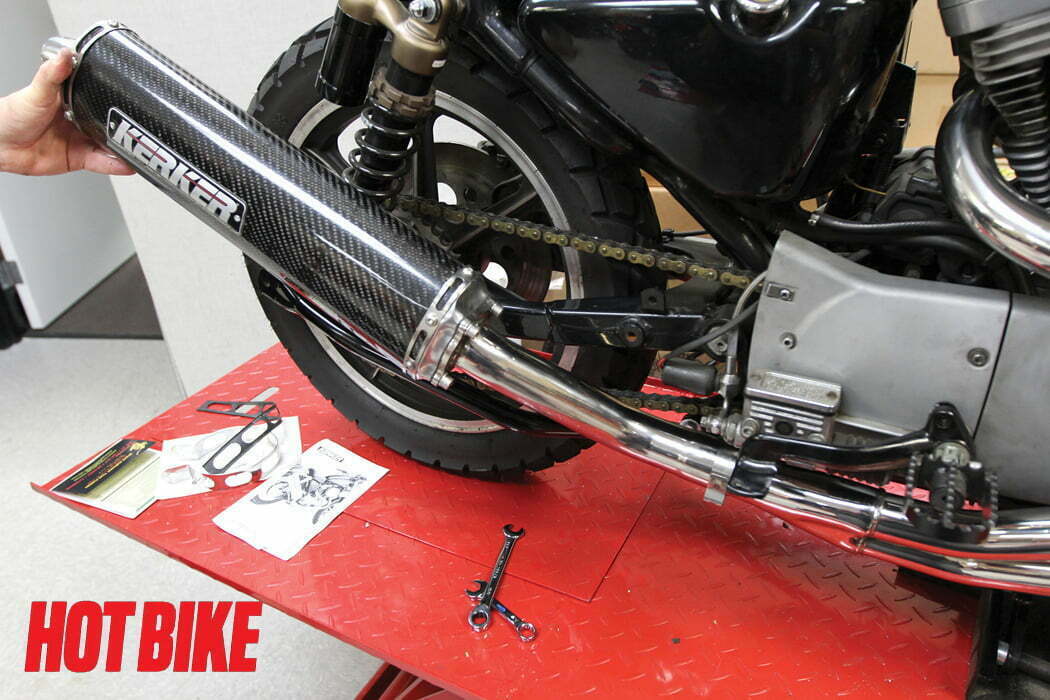

  1. The insanely beautiful carbon and stainless muffler was then slipped onto the headpipe.

Words and Photos: Jeff Leighton

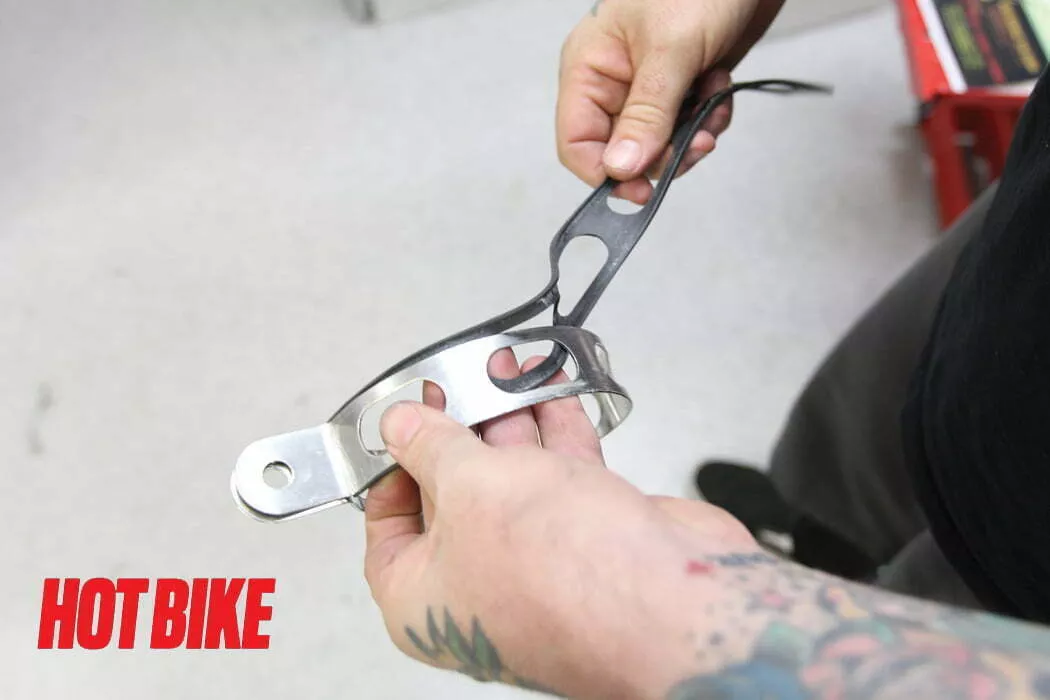

  1. We attached the protective rubber portion to the stainless muffler hanger so it doesn’t scratch that sweet carbon fiber.

Words and Photos: Jeff Leighton

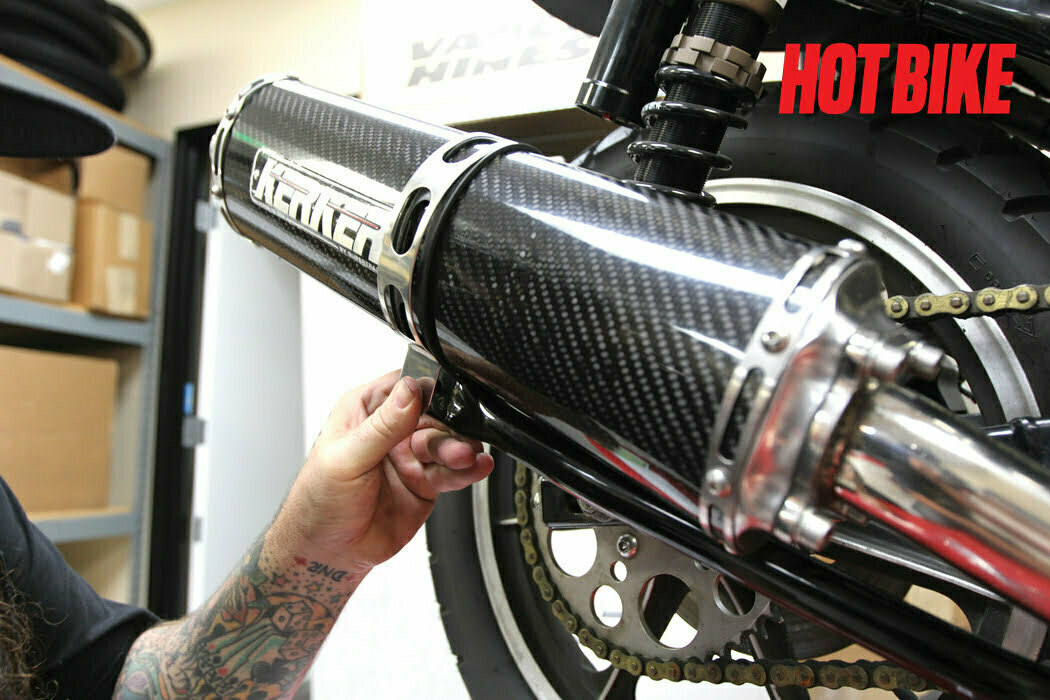

  1. The clamp was then fitted to the muffler and attached to the exhaust mount.

Words and Photos: Jeff Leighton

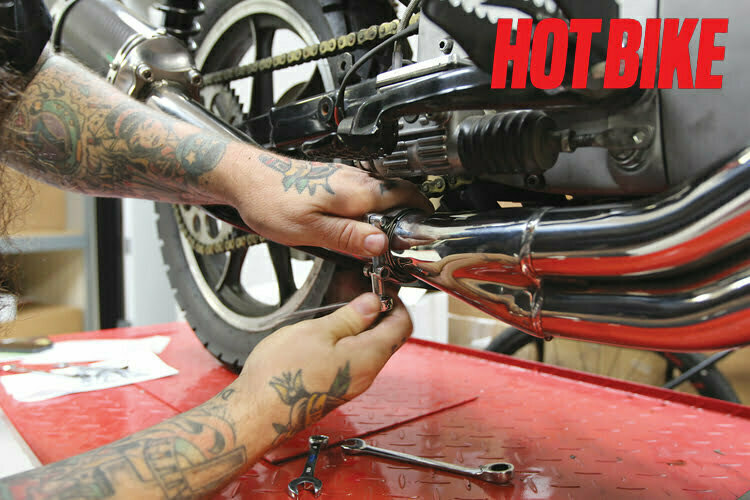

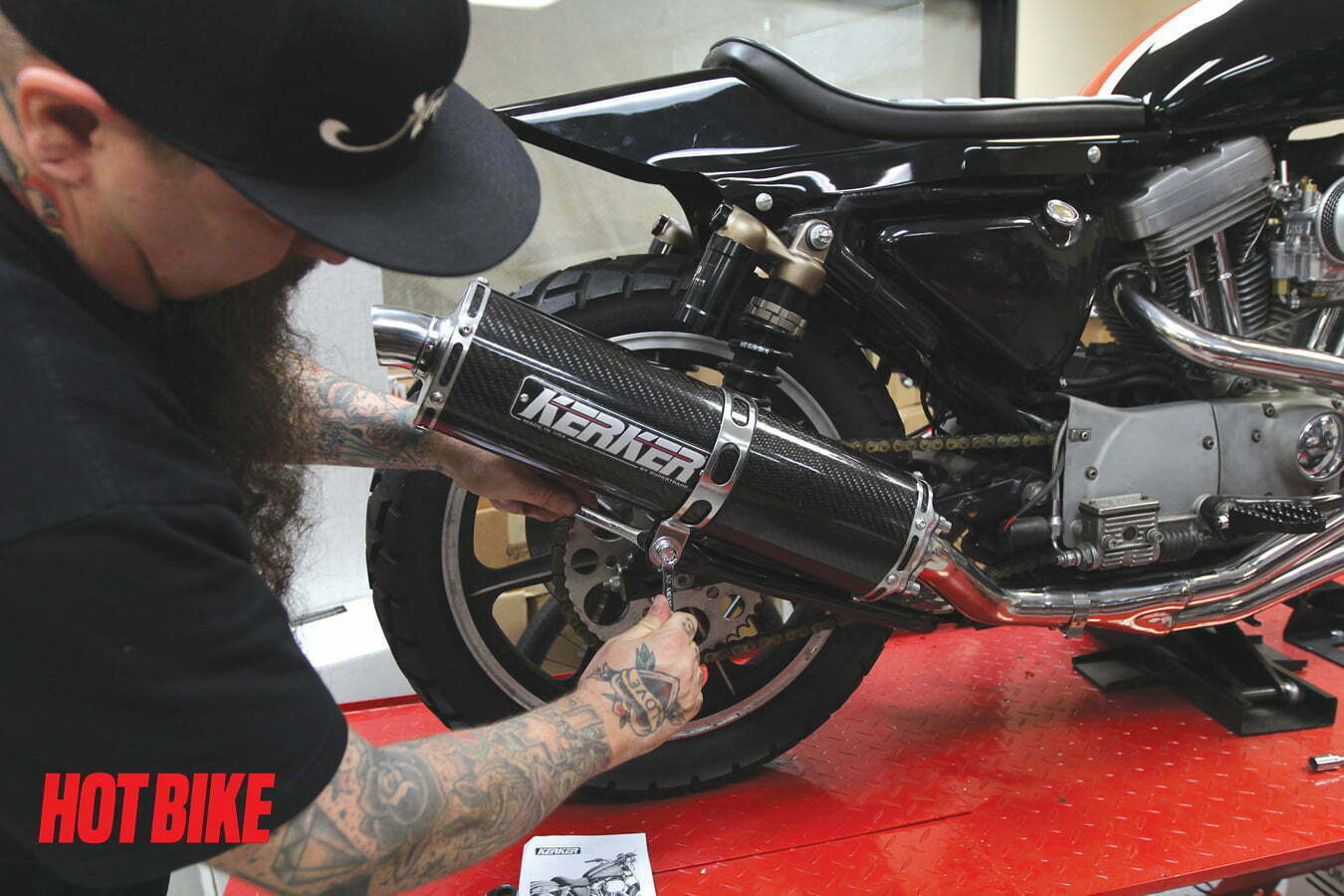

  1. Once the system was deemed to be in the correct location, the exhaust clamp was tightened down to Kerker’s suggested specifications.

Words and Photos: Jeff Leighton

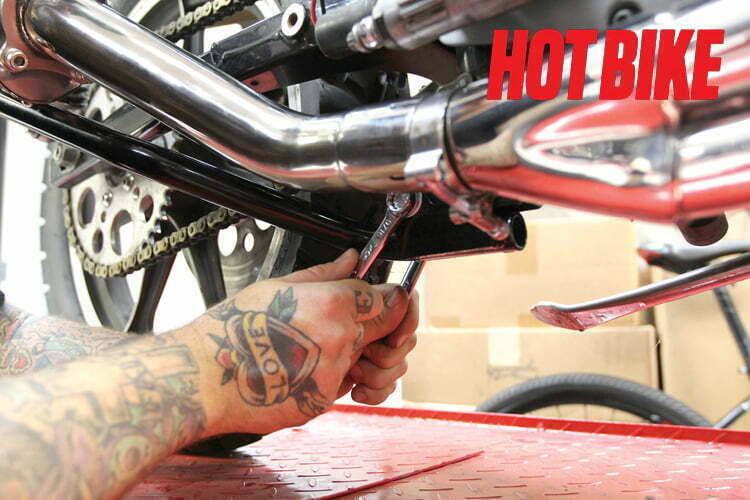

  1. The exhaust bracket was also torqued to factory specs as per our H-D 1999 Sporty manual.

Words and Photos: Jeff Leighton

  1. Then the front and rear headpipes were affixed to the engine using factory specifications.

Words and Photos: Jeff Leighton

  1. To finish off the installation of this peppy pipe we snugged up the stainless muffler mount. And we were done.

Words and Photos: Jeff Leighton

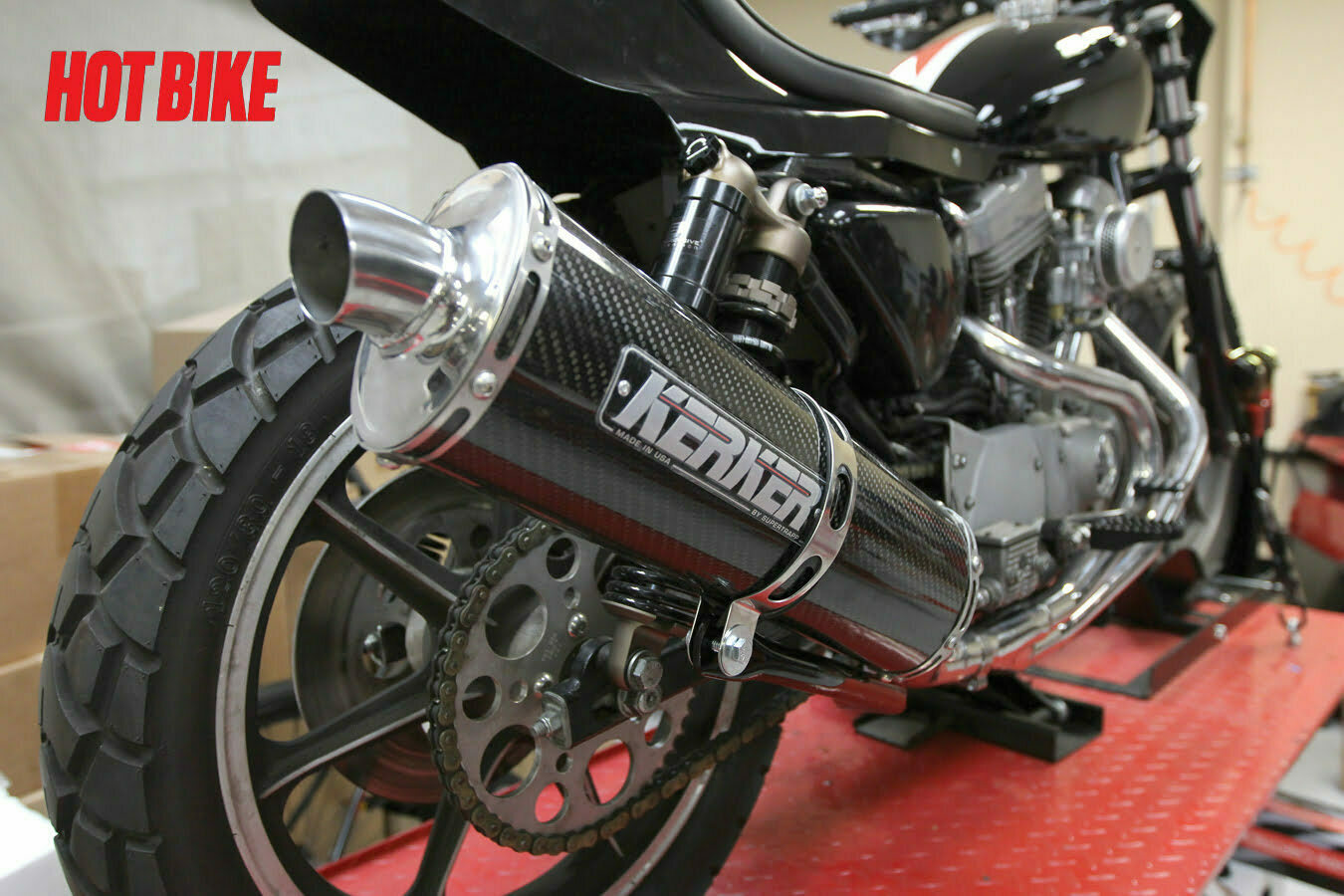

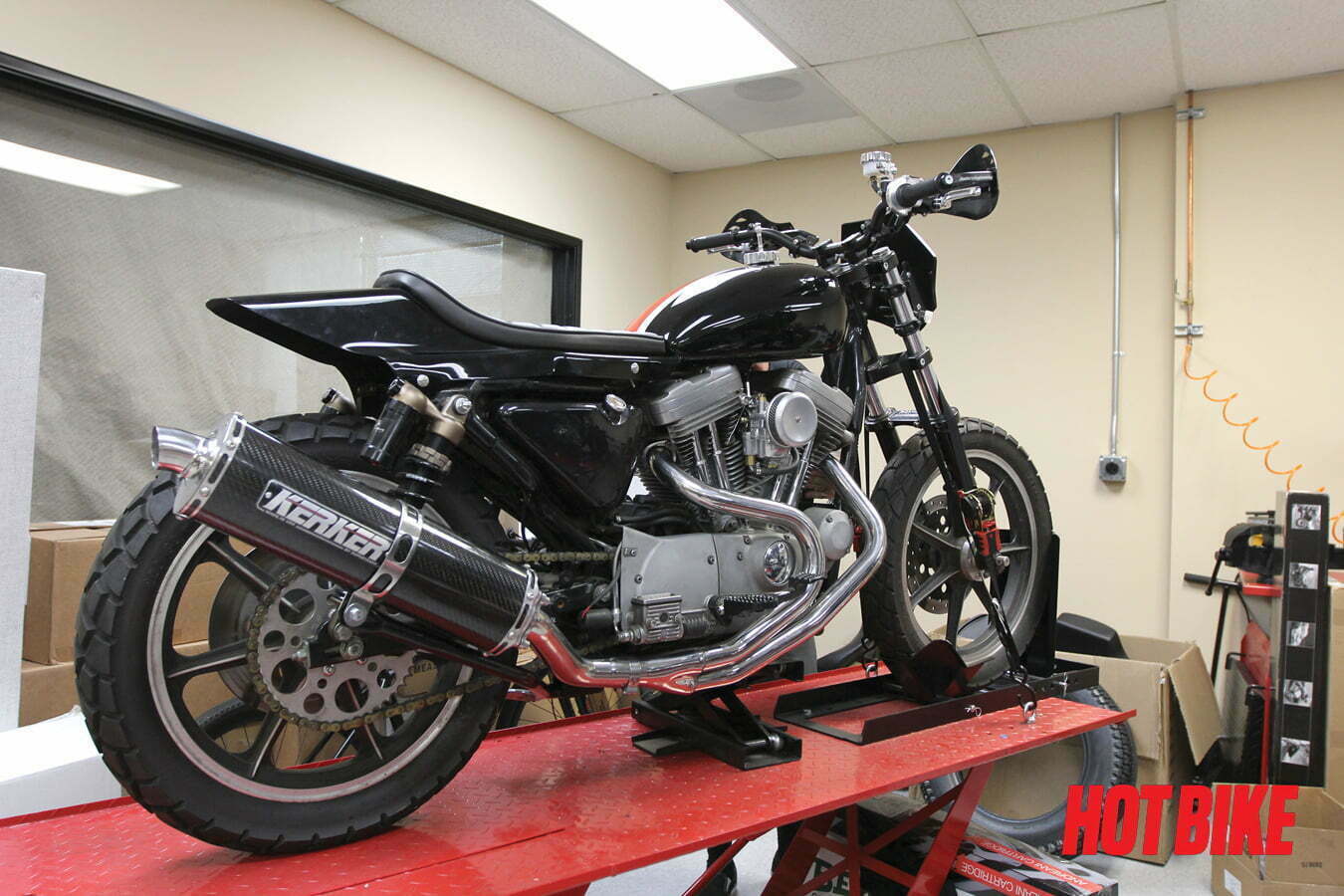

  1. And here it is. One racy little carbon and stainless 2-ino-1 pipe made in the USA by one of the most legendary exhaust manufacturers in the world.
